High accuracy RS485 compress gas thermal mass flow meter
1. Product introduction
The thermal mass flowmeter consists of sensor and signal analysis, processing and control unit. One part of the sensor measures the temperature while the other part is used for heating. The former monitors the actual process temperature value; The latter maintains a constant temperature value so that it is always higher than the actual process temperature and maintains a constant temperature difference with the process temperature. The greater the mass flow rate of gas, the greater the cooling effect and the greater the energy required to maintain the differential temperature. Therefore, the mass flow rate of the measured gas can be obtained by measuring the energy of the heater.
2. Main Features
1. Thermal gas mass flowmeter does not need temperature and pressure compensation for gas flow measurement. It can measure the mass flow rate or standard volume flow rate of the gas.
2. Wide range ratio. It can measure gas with flow rate from 0.5Nm/s to 100Nm/s, and also can be used for gas leak detection.
3. Easy installation and maintenance. On-site conditions permit, installation and maintenance without shutdown can be realized.

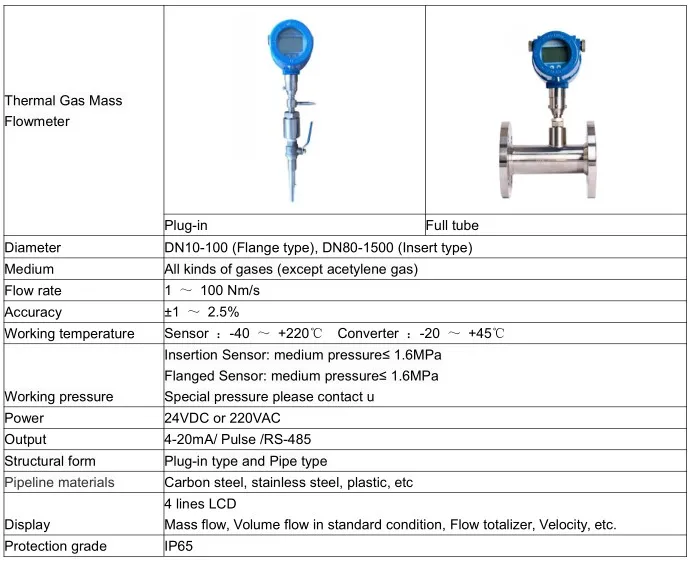

3.Technical Specification Table
4.Dimensions
5. Flow range
Type | Diameter (mm) | Min flow (Nm3/h) | Max flow (Nm3/h) |
TMF-10 | 10 | 0.08 | 8 |
TMF-15 | 15 | 0.5 | 50 |
TMF-20 | 20 | 0.9 | 90 |
TMF-25 | 25 | 1.4 | 140 |
TMF-32 | 32 | 2.8 | 280 |
TMF-40 | 40 | 4.5 | 450 |
TMF-50 | 50 | 7 | 700 |
TMF-65 | 65 | 11 | 1100 |
TMF-80 | 80 | 18 | 1800 |
TMF-100 | 100 | 28 | 2800 |
TMF-125 | 125 | 44 | 4400 |
TMF-150 | 150 | 63 | 6300 |
TMF-200 | 200 | 110 | 11000 |
TMF-250 | 250 | 170 | 17000 |
TMF-300 | 300 | 250 | 25000 |
TMF-350 | 350 | 340 | 34000 |
TMF-400 | 400 | 450 | 45000 |
TMF-450 | 450 | 570 | 57000 |
TMF-500 | 500 | 700 | 70000 |
TMF-600 | 600 | 1000 | 100000 |
TMF-700 | 700 | 1300 | 130000 |
TMF-800 | 800 | 1800 | 180000 |
TMF-900 | 900 | 2200 | 220000 |
TMF-1000 | 1000 | 2800 | 280000 |
Packing and shipping
Factory Introduction
Tianjin kailong Instrument Technology Co. Ltd. is a company that integrates processing, production, sales and technical services. Now it has the ability to design, develop, detect and manufacture products. It is a comprehensive and diversified enterprise. The main products are Electromagnetic Flowmeter, Vortex Flowmeter, Turbine flow meter and so on. We will adhere to the spirit of development, strict and demanding, striving for the best, and set customer satisfaction as our eternal goal. We will give you best and competive price for you.
Welcome to inquiry!!!
FAQ
Q:Is the quality of your products reliable?
A:As for the quality of the product, you can rest assured that our company has been producing this product for nearly ten years.
Q: Can I visit your factory?
A: You’d be warmly welcomed.
Q: Do you have any certificate? Can you provide certificate base on my request?
A: We have ISO and CE certificate. If you need other certificates, we can apply.
Q: What is the warranty for your product?
A: Lifetime maintenance.
Q: How long it will take you to quote for my enquiries?
A: We’ll try to be as fast as we can, normally within 2 hours. Your specific requests about the products will speed us up.
