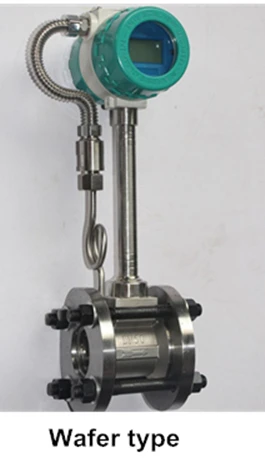

Digital flange type stainless steel steam flow meter
Gas Steam Flow Meter Description
LUGB vortex flow meters are widely used in the measurement and control of superheated steam, saturated steam, compressed air and general gases (oxygen, nitrogen, hydrogen, natural gas, gas, etc.), water and liquids (such as water, gasoline, alcohol, benzene, etc.) in petroleum, chemical, metallurgy, heat, textile, paper and other industries.
Gas Steam Flow Meter Technical Parameter
Nominal diameter (mm) | 15,20,25,40,50,65,80,100,125,150,200,250,300,(300~1000 plug-in) |
Nominal press (MPa) | DN15-DN200 4.0(>4.0 supply agreement),DN250-DN300 1.6(>1.6 supply agreement) |
Medium temperature (℃) | Piezoelectric type:-40~150,-40~260,-40~330; Capacitive type: -40~400,-40~500(supply agreement) |
Body material | 1Cr18Ni9Ti,(Other materials supply agreement) |
Allowable vibration acceleration | Piezoelectric type:0.2g Capacitive type:1.0~2.0g |
Accuracy | ±1%R,±1.5%R;plug-in:±2.5%R, |
Range | 1:6~1:30 |
Power | Sensor:DC +12V,DC +24V;transmitter:DC +12V ,DC +24V; Battery-powered:3.6V battery |
Output single | Square wave pulse (excluding battery powered) : high level≥5V,low level≤1V;Current: 4 ~ 20mA |
Pressure loss coefficient | Comply with JB/T9249 standard Cd≤2.4 |
Explosion-proof marks | Intrinsic safety type:ExdⅡia CT2-T5 , Flameproof type:ExdⅡCT2-T5 |
Protection grade | Standard type: IP65 Diving type: IP68 |
Environmental conditions | Temperature: -20℃~55℃,Relative humidity: 5%~90%,Atmospheric pressure: 86~106kPa |
Medium | Gas, liquid, steam |
Transmission distance | Three-wire system pulse output type:≤300m, two-wire system standard current output type (4~20mA) ≤1500m;Load resistance ≤750Ω; RS485/HART≤1200m. |

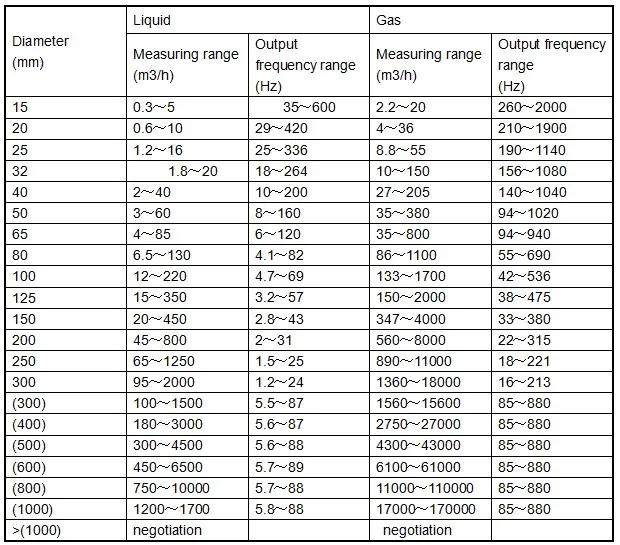

Working Flow Range Of Vortex Gas Steam Flow Meter
Structure of Vortex Flow Meter
Gas Steam Flow Meter Applicatiopn
Intelligent Vortex gas flow meter can be widely used in petroleum, chemical industry, electric power, metallurgy, urban gas supply and other industries to measure the flow of various gases, is currently the oilfield and urban natural gas transmission and distribution measurement and trade measurement of the preferred product.

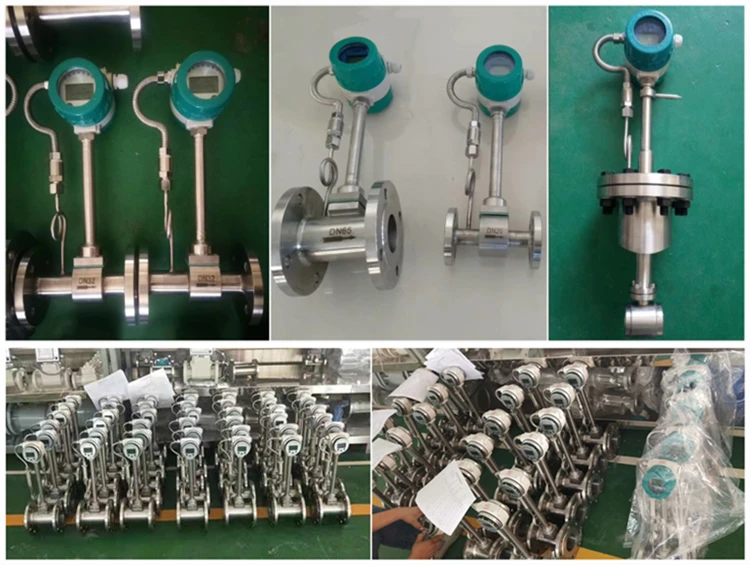

Packing and shipping
Factory Introduction
Tianjin kailong Instrument Technology Co. Ltd. is a company that integrates processing, production, sales and technical services. Now it has the ability to design, develop, detect and manufacture products. It is a comprehensive and diversified enterprise. The main products are Electromagnetic Flowmeter, Vortex Flowmeter, Turbine flow meter and so on. We will adhere to the spirit of development, strict and demanding, striving for the best, and set customer satisfaction as our eternal goal. We will give you best and competive price for you.
Welcome to inquiry!!!
FAQ
Q:Is the quality of your products reliable?
A:As for the quality of the product, you can rest assured that our company has been producing this product for nearly ten years.
Q: Can I visit your factory?
A: You’d be warmly welcomed.
Q: Do you have any certificate? Can you provide certificate base on my request?
A: We have ISO and CE certificate. If you need other certificates, we can apply.
Q: What is the warranty for your product?
A: Lifetime maintenance.
Q: How long it will take you to quote for my enquiries?
A: We’ll try to be as fast as we can, normally within 2 hours. Your specific requests about the products will speed us up.
